1500 X 3000 Raycus 1000W Stainless Carton Metal Cutter Fiber Laser Cutting Machine

Name: 1500 X 3000 Raycus 1000W Stainless Carton Metal Cutter Fiber Laser Cutting Machine
Brand: Honest
Price: 16800 USD

China 1500 X 3000 Raycus 1000W Stainless Carton Metal Cutter Fiber Laser Cutting Machine wholesale

Brand Name : Honest

Model Number : 3015

Certification : CE ISO

Place of Origin : China

MOQ : 1

Price : 16800$-30000$ per one set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance

Supply Ability : 20 per a month

Delivery Time : 10-20 wooking days

Packaging Details : wooden package

Working table : 3000*1500 (mm)

After-sales service provided : Engineers available to service machinery overseas

Laser source : Raycus or IPG or Max

Cooling mode : Water Cooling

Cutting speed : 120/min

Control software : Cypcut

Graphic format supported : DXF,PLT,AI,DST,BMP

Condition : New

Contact Now

Hot Sale Low Price 1500 X 3000 Raycus 1000W Stainless Carton Metal Cutter Fiber Laser Cutting Machine

Product Overview

Hot sale low price 1500 X 3000 stainless carton metal cutter fiber laser cutting machine

The principle of the fiber laser cutting machine: fiber laser is to dope pump material into the fiber. After the laser of a specific wavelength emitted by the semiconductor laser is combined, the fiber generates laser light and focuses on the surface of the work-piece, so that the work-piece is The area irradiated by the light spot melts and vaporizes in an instant, and the automatic drilling is realized by moving the irradiation position of the light spot through the computer-controlled numerical control mechanical system.

1500 X 3000 Raycus 1000W Stainless Carton Metal Cutter Fiber Laser Cutting Machine

PRODUCT SPECIFICATIONS

Model	HN-1530 laser cutting machine
Working area	1530mm x 3000mm
Laser type	Fiber laser
Rated laser power(optional)	1000W
Traditional system	Gantry double drive structure
Lubrication system	Fully automatic
Maximum speed	100m/min
Maximum acceleration	1.0G
Positioning accuracy	±0.01mm/1000mm
Repeated positioning accuracy	±0.03mm/1000mm
Support for graphic formats	CAD,DXF(etc)
Work environment	0-40°C,humidity≤80%,no condensation
Total power	20KW
Power demand	Three phase 380V /50HZ /60HZ
Outline size	4450mm x 2450mm x 1800mm
Total weight approximately	4000KG

Machine configuration

Machine Advantage

(1) High precision, fast speed, narrow cutting seam, minimum heat-affected zone, smooth cutting surface without burrs;
 (2) The laser cutting head does not touch the surface of the material and will not scratch the work-piece;

 (3) The slit is the narrowest, the heat-affected zone is the smallest, the local deformation of the work-piece is small, and there is no mechanical deformation;

 (4) Good processing flexibility, can process any graphics, and can also cut pipes and other profiles;

 (5) It can cut any hardness materials such as steel plate, stainless steel, aluminum alloy plate, cemented carbide, etc. without deformation.

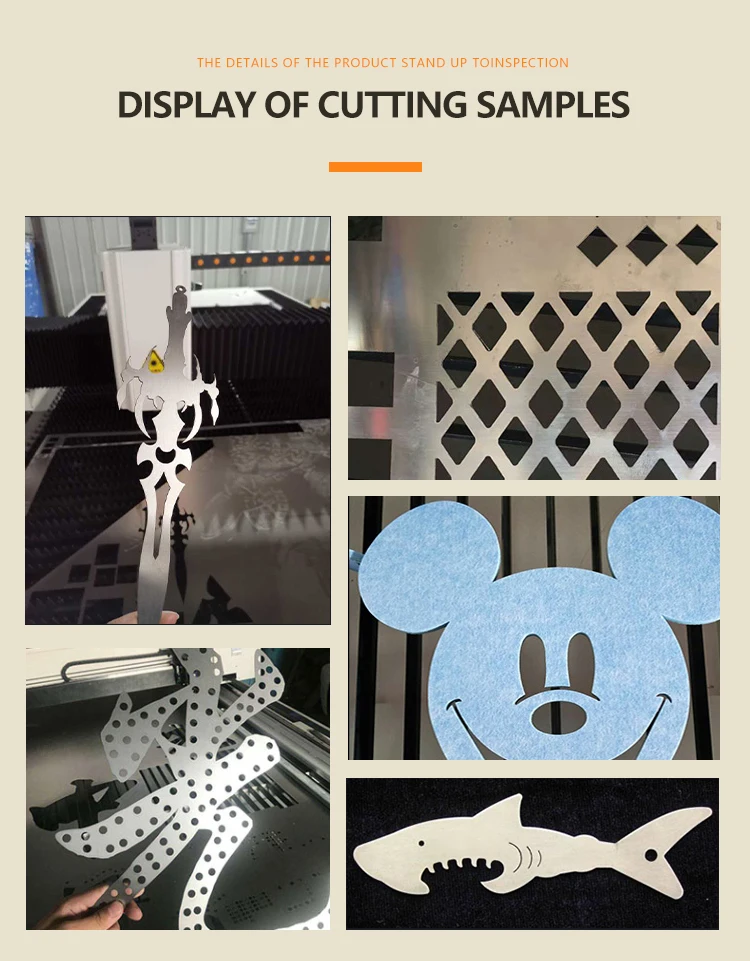

Product application

Materials that can be processed by the fiber laser cutting machine: It can cut a variety of metal plates and pipes, mainly suitable for stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, galvanized steel, pickling Plate, copper, silver, Cutting of metal sheets and pipes such as gold and qin.

 The applicable range of fiber laser cutting machine: metal sheet processing, advertising sign production, high and low voltage electrical cabinets Production, mechanical parts, kitchenware, automobiles, machinery, metal crafts, saw blades, electrical parts, eye industry, elasticReeds, circuit boards, electric kettles, medical microelectronics, hardware, knife measuring tools and other industries.

Certifications

All products are available upon request, with or without trademarks.If you need OEM service with your own brand or product,please let us know,If you have any other specific requirements,please feel free to contact us.Our factory has obtained the import and export license issued by the Ministry of foreign trade,and passed the ISO9001 quality management system certification and CE certification.In the quality layer by layer,we will wholeheartedly serve for the majority of customers.
